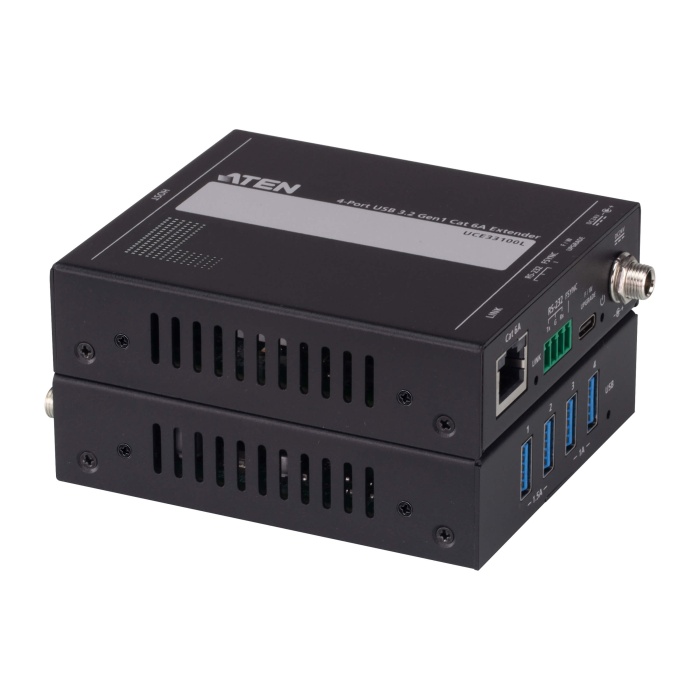

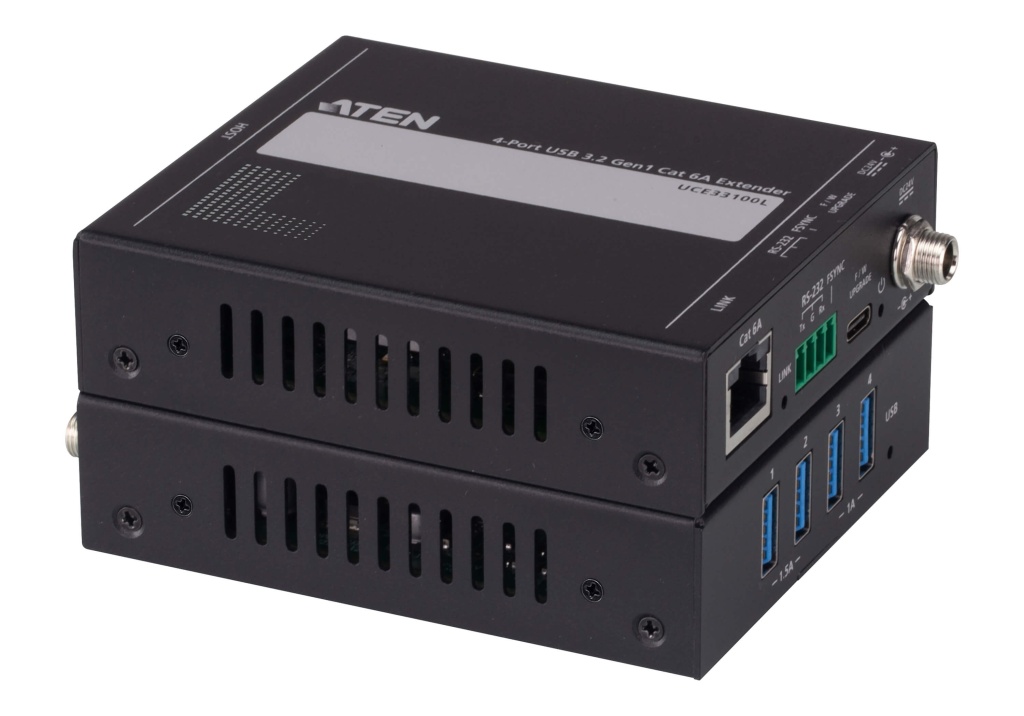

Name: 4-Port USB 3.2 Gen 1 Cat 6A Extender (up to 100 m)
Brand: Aten
SKU: bml_ATEN-UCE33100
Price: 27677.62 try
Availability: InStock

4-Port USB 3.2 Gen 1 Cat 6A Extender (up to 100 m)

Barkod: 4719264648854

Marka: Aten

Kategori: USB Aksesuarları

Stok: 1

27.677,62 TL

Hızlı Gönderi

Güvenli Alışveriş

İade ve Değişim

A two-piece extension kit that transmits USB signals over a Cat 6A cable
Long distance USB 3.2 data transmission at up to 5Gbps across 100m
Backward compatible with USB 2.0 / 1.1 specifications
4x USB Type-A ports built on the remote unit for connection to multiple USB peripherals (flash drives, keyboards, mice, webcams, interactive whiteboards, and any other USB-based devices)
Supports bi-directional RS-232 pass-through for integration into control systems
Supports bi-directional Frame Synchronization (FSYNC) GPIO pass-through for industrial camera applications
Bi-directional 24V power over cable eliminates the need for an additional power adapter when either of the local or remote unit receives power
Plug-and-play with no driver / software required to work with all operating systems
Compact, wall-mountable enclosure elevates installation flexibility and helps save space

Local Unit
Upstream Port	1 x USB Type B Female
Downstream Port	1 x RJ45 Female 1 x USB Type C Female (Firmware Upgrade) 1 x 3-pin Terminal Plug (RS-232) 1 x 1-pin Terminal Plug (FSYNC) Note: The USB-C port is for firmware upgrade only. Please do not connect any other devices during regular use.
Power	1 x DC Jack
Remote Unit
Upstream Port	1 x RJ45 Female
Downstream Port	4 x USB Type A Female 1 x USB Type C Female (Firmware Upgrade) 1 x 3-pin Terminal Plug (RS-232) 1 x 1-pin Terminal Plug (FSYNC) Note: The USB-C port is for firmware upgrade only. Please do not connect any other devices during regular use.
Power	1 x DC Jack
USB Specification	USB3.2 Gen1
Cable Type	Cat 6A Ethernet Cable
Signal Range	100m
LEDs
Status	3 x LED
Power Consumption	DC24V:1.92WBTU/h DC24V:2.64WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	20–90% RH, Non-condensing
Physical Properties
Weight	0.26 kg ( 0.57 lb )
Housing	Metal Enclosure
Dimensions (L x W x H)	10.75 x 8.50 x 2.55 cm (4.23 x 3.35 x 1 in.)

Package Contents

1x UCE33100 Local and Remote Units
1x USB 3.2 Gen 1 Type-A to USB Type-B cable
2x 4-pin terminal blocks
4x mounting kits
1x power adapter
1x user instructions
